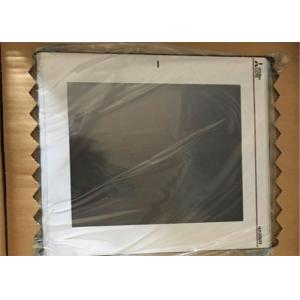

Mitsubishi Human Machine Interface GOT 2000 GT2710-VTWD Touch Screen
Product Details
- GT27 10.4 INCH WHITE VGA COLOR TOUCHSCREEN DC (GT2710VTWD)
- Manufacturer: Mitsubishi
- Series: GOT2000
Technical Specifications
| Condition | New |
| Weight (kg) | 2.1 |
| Our Part Number | GT2710VTWD |
| Height (mm) | 218 |
| Width (mm) | 303 |
| Depth (mm) | 52 |
| Manufacturer | Mitsubishi |
| Manufacturer Range | GOT |
| Manufacturer Series | GOT 2000 |
| IP Rating | IP67 |
| IP Rating Back | IP20 |
| Display Colour | 65536 |
| Display Resolution | 640 x 480 |
| Display Size | 10.4" |
| Display Type | TFT |
| Backlighting | Yes |
| Internal Memory (Mb) | 128 |
| Keyboard Type | Touch Screen |
| Screen Aspect | Landscape |
Specifications
| Screen size: | 10.4" |
| Display type: | TFT colour LCD |
| Display dimensions: | w211.2 x h158.4mm |
| Graphical resolution: | 640 x 480 pixels |
| Power supply: | 24V d.c. |
| Interface: | RS422, RS232, Ethernet, USB and SD card |
| Overall dimensions: | w303 x h218 x d52mm |
Features:
- Flush, white panel versions for food and beverage applications
- Multi-touch, pinch-zoom capability
- Built-in Ethernet, RS232 & RS422/485
- SD memory card slot
- Operator authentication and logging
- Wide choice of drivers for Mitsubishi and other manufacturers controllers
- All versions have 65K colour screens
- Oil resistant protective sheets available
High Specification Models With Multi-Touch/Gesture Control
The operating terminals of the GT27 series provide TFT LCD displays with 65K colours and screen sizes of 5.7", 8.4", 10.4", 12.1" and 15" with VGA/SVGA/XGA resolution and up to 128MB internal memory. All terminals come with Ethernet, USB, RS232, and RS422/485 interfaces and SD card slot. Additionally the GT27 can be equipped with optional interfaces like CC-Link IE, CC-Link IE Field, CC-Link, MELSECNET/H and a direct connection to the PLC bus.
Special models of the GT27 with the sizes of 10.4" and 12.1" are available with a white frame and without the front USB interface, ideal for Food and Beverage applications.
The GT27 offers several pre defined diagnostic and troubleshooting functions, like backup/restore, PLC program monitor, servo/motion monitor, motion SFC monitor and CNC monitor.
